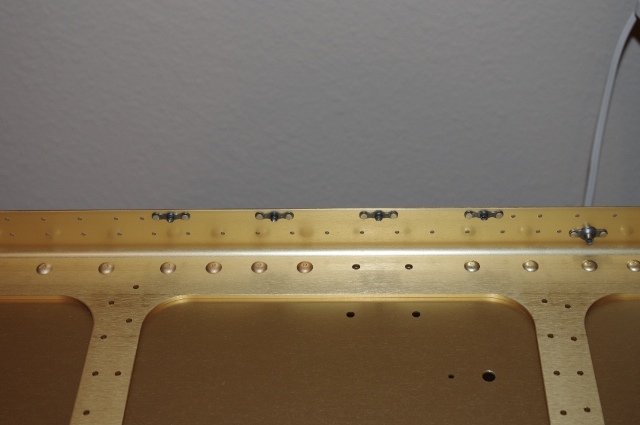

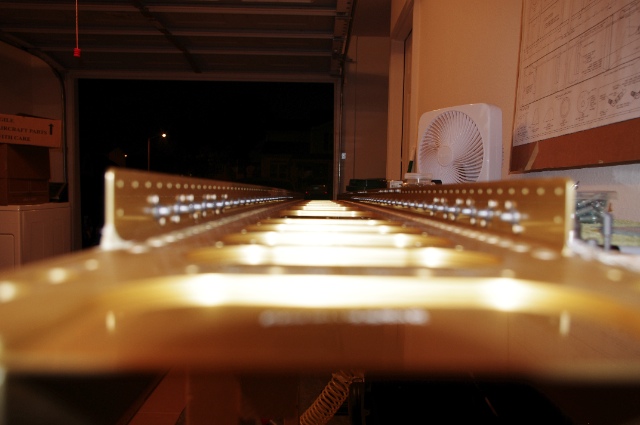

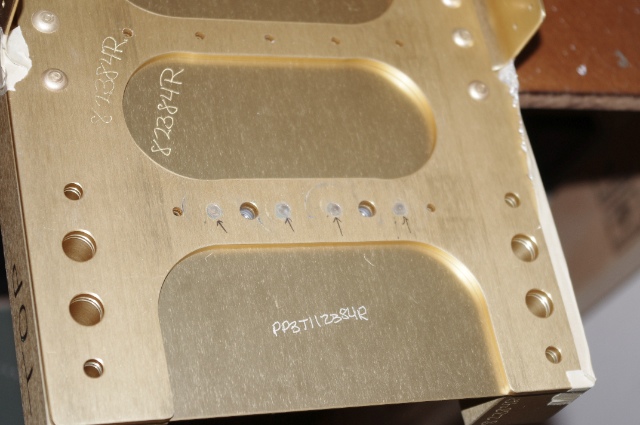

I finally finished up all the nutplates and exited nutplate purgatory! Here are the top and bottom view of the wing attach nutplates:   Here is a shot of the inspection panel nutplates. These are on the bottom flange of the spar. There are three groups of these on each wing.  Here is the all encompassing nutplate photograph. The two wing attach nutplates are right under the camera lens, the fuel tank attachment nutplates line both top and bottom flanges of the spar for about half its length, and on the right flange here, you can see the groups of four nutplates for the inspection panels.  Feels good to be done with this! Stay tuned for the tie-down brackets...
|
|||||
